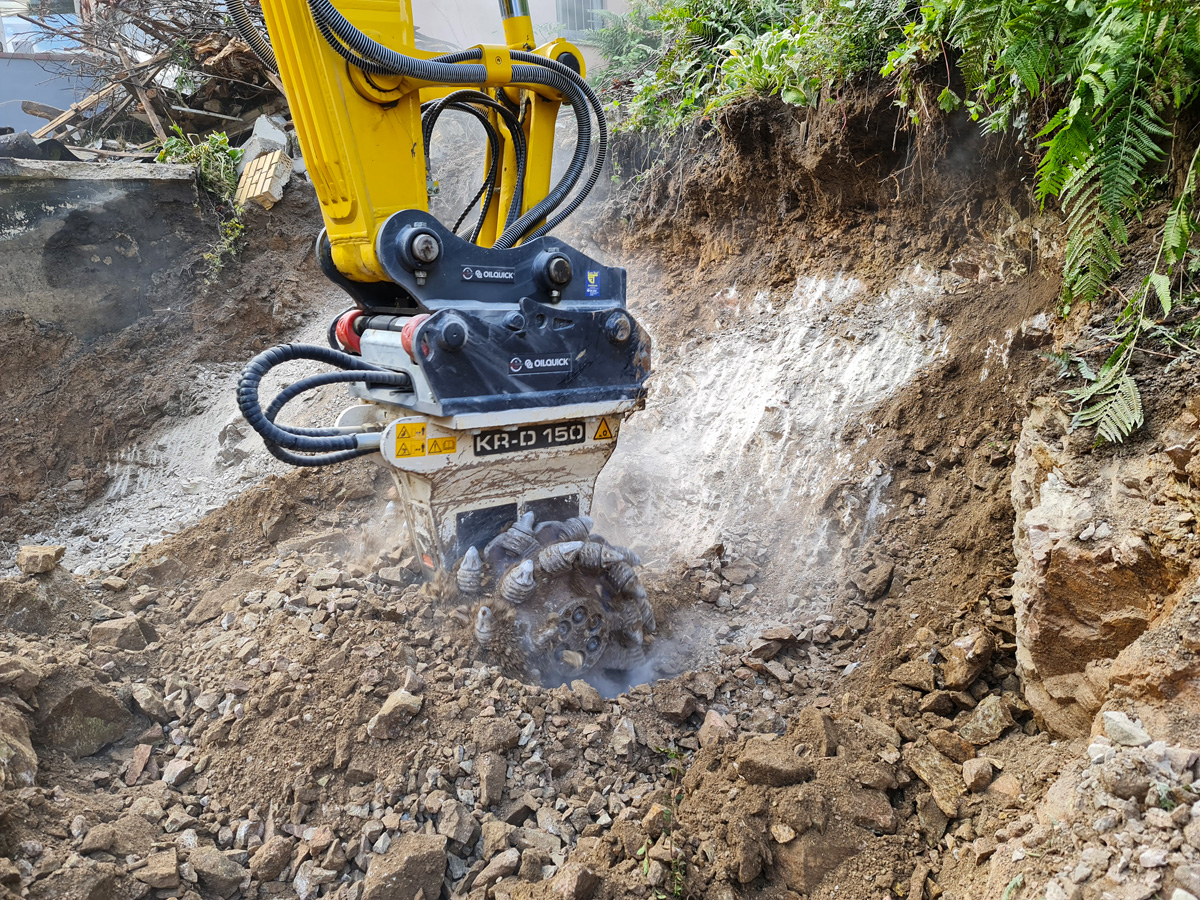

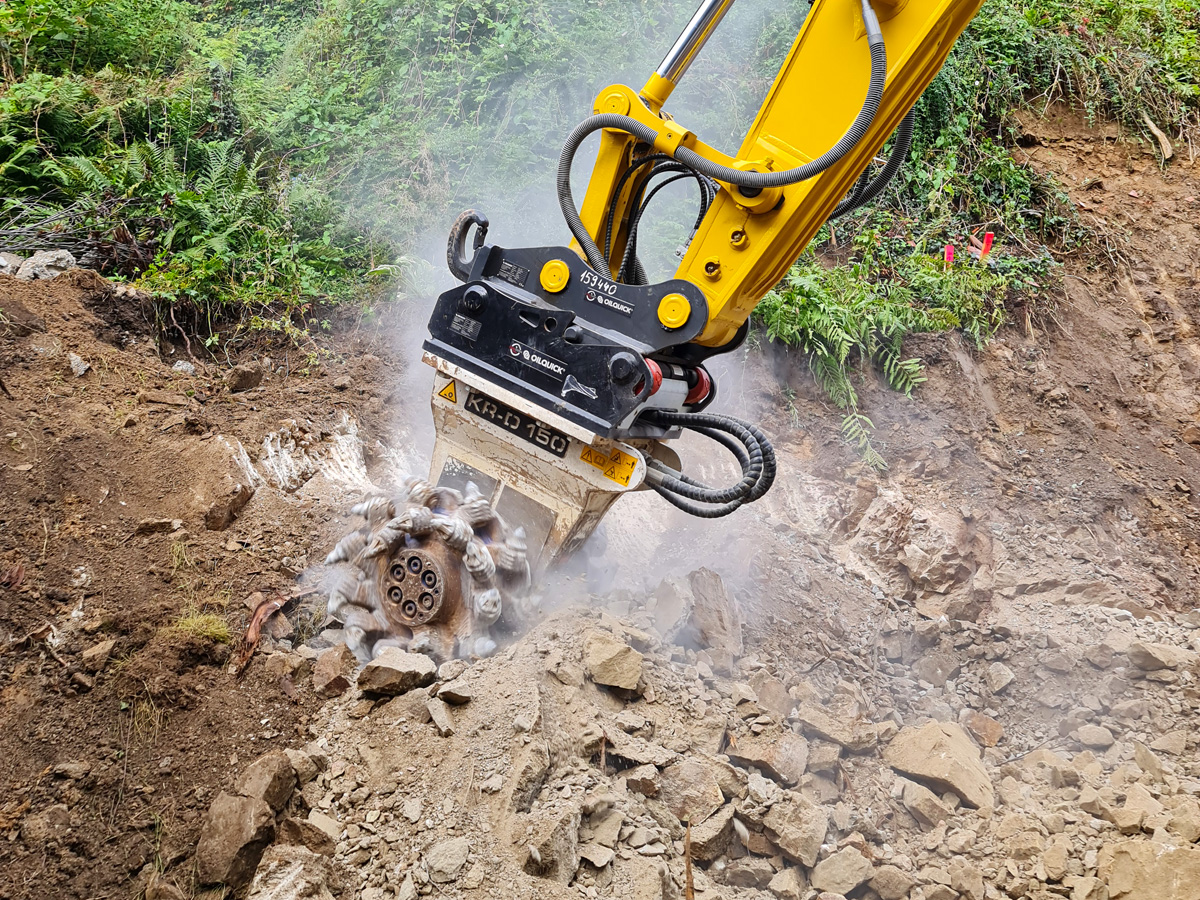

Model KRD 150

TECHNICAL DATA

VIDEO

FOTOS

Measure:

Recommended excavator weight
30 – 40 t 66K – 88K lb
Rated power
120 kW 160 hp (120 kW)
Drum cutter length (A)
1.070 mm 42 in
Cutter head width (B)
1.000 mm 40 in
Cutter drum diameter (C)
730 mm 29 in
Recommended rotation speed
65 rpm 65 rpm
Recommended oil flow
280 – 350 l/min 74 – 93 gal/min
Max. oil flow at 10 bar
350 l/min 92 gal/min
Max. operating hydraulic pressure
400 bar 5,800 psi (400 bar)
Max. torque at 380 bar
30,300 Nm 22,340 lbf·ft
Max. cutting force at 380 bar
83.0 kN 18,660 lbf
Weight
1.500 kg 3,310 lb
Pick box
PH 32 HD Type PH 32 HD Type
Number of picks
48 Pcs 48 Pcs
Standard pick
ER 17/75/70/30 Q ER 17/75/70/30 Q
