EKT range
10
models

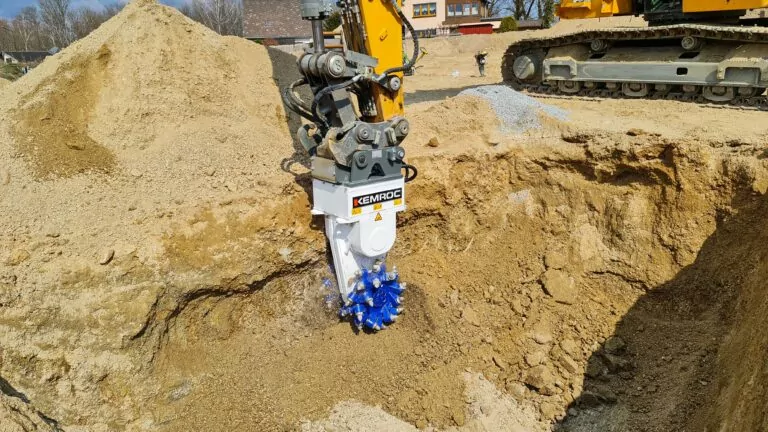

Rotary drum cutters — can be converted into EK chain cutters
10
models
Features
- Can be converted to an EK model
- Fast and strong
- Two motors for extra hydraulic power
- Tough, rigid gearbox housing
- Drums supported on robust bearings
- Protection for hydraulic hoses
- Works underwater without need for modifications
Application areas
- Trenching and pipeline work
- Mining of soft to medium hard minerals
- Can also be used for concrete renovation, profiling, underwater excavations and tunnelling
World innovation
The patented EK range of chain cutters are one of our core products and continues to be recommended as an ideal tool for trenching contractors. This concept is being expanded with the addition of the new EKT range of traditional style drum cutters. These lower priced models are supplied as rotary drum cutters without a central cutting chain, but conversion kits are available so that cutter chains can be fitted later.
Measure:
Compare Models
- Cutter drum diameter (C)
- Cutter head width (B)
- Drum cutter length (A)
- Max. cutting force at max. torque
- Max. oil flow
- Max. operating hydraulic pressure
- Max. torque at max. hydraulic pressure
- Max. uniaxial compressive strength
- Number of picks
- Pick box
- Possibility of conversation to a chain cutter
- Rated power
- Recommended excavator weight
- Recommended oil flow
- Recommended rotation speed
- Standard pick
- Weight
Show more
Show less
-
EKT 20
- 225 mm 9 in
- 410 mm 17 in
- 540 mm 22 in
- 17,8 kN 4,000 lbf
- 50 l/min 13 gal/min
- 300 bar 4,350 psi (400 bar)
- 2,000 Nm 1,480 lbf·ft
- 25 MPa 3,600 psi (25 MPa)
- 56 Pcs 56 Pcs
- PH 14 Type PH 14 Type
- yes yes
- 22 kW 29.5 hp (22 kW)
- 2 – 6 t 4.4K – 8.8K lb
- 20 – 40 l/min 5 – 11 gal/min
- 100 rpm 100 rpm
- ER 15/29/26/14 C ER 15/29/26/14 C
- 130 kg 290 lb
Details -
EKT 40
- 445 mm 18 in
- 500 mm 20 in
- 1.000 mm 40 in
- 25,6 kN 5,760 lbf
- 120 l/min 32 gal/min
- 380 bar 5,500 psi (400 bar)
- 5.700 Nm 4,200 lbf·ft
- 30 MPa 4,400 psi (30 MPa)
- 52 Pcs 52 Pcs
- PH 20 Type PH 20 Type
- yes yes
- 44 kW 59 hp (44 kW)
- 7 – 11 t 15.5K – 22.5K lb
- 70 – 90 l/min 18 – 24 gal/min
- 80 rpm 80 rpm
- ER 16/46/38/20 C ER 16/46/38/20 C
- 430 kg 950 lb
Details -
EKT 60
- 590 mm 23 in
- 500 | 600 mm 20 | 24 in
- 1.190 mm 47 in
- 37,3 kN 8,390 lbf
- 220 l/min 58 gal/min
- 400 bar 5,800 psi (400 bar)
- 11,000 Nm 8,110 lbf·ft
- 50 MPa 7,300 psi (50 MPa)
- 40 | 60 Pcs 40 Pcs
- PH 22 Type PH 22 Type
- yes yes
- 60 kW 80 hp (60 kW)
- 12 – 17 t 26.5K – 37.5K lb
- 130 – 160 l/min 34 – 43 gal/min
- 80 rpm 80 rpm
- ER 15/46/38/22 C ER 15/46/38/22 C
- 725 | 775 kg 1,600 | 1,710 lb
Details -
EKT 100
- 690 mm 27 in
- 700 | 800 mm 28 | 32 in
- 1.460 mm 58 in
- 53.0 kN 11,910 lbf
- 260 l/min 69 gal/min
- 400 bar 5,800 psi (400 bar)
- 18,300 Nm 13,500 lbf·ft
- 80 MPa 12,000 psi (80 MPa)
- 40 | 44 Pcs 40 | 44 Pcs
- PH 32 HD Type PH 32 HD Type
- yes yes
- 100 kW 134 hp (100 kW)
- 18 – 30 t 40K – 66K lb
- 180 – 240 l/min 48 – 64 gal/min
- 70 rpm 70 rpm
- ER 17/75/70/30 Q ER 17/75/70/30 Q
- 1.300 | 1.360 kg 2,870 | 3,000 lb
Details -
EKT 110
- 690 mm 27 in
- 700 | 800 mm 28 | 32 in
- 1.460 mm 58 in
- 71.0 kN 15,960 lbf
- 300 l/min 80 gal/min
- 400 bar 5,800 psi (400 bar)
- 24,500 Nm 18,070 lbf·ft
- 80 MPa 12,000 psi (80 MPa)
- 40 | 44 Pcs 40 | 44 Pcs
- PH 32 HD Type PH 32 HD Type
- yes yes
- 110 kW 147 hp (110 kW)
- 25 – 32 t 55K– 70K lb
- 210 – 260 l/min 56 – 69 gal/min
- 65 rpm 65 rpm
- ER 17/75/70/30 Q ER 17/75/70/30 Q
- 1.300 | 1.360 kg 2,870 | 3,000 lb
Details -
EKT 140
- 720 mm 27 in
- 880 mm 35 in
- 1,540 mm 61 in
- 70.6 kN 15,870 lbf
- 420 l/min 110 gal/min
- 400 bar 5,800 psi (400 bar)
- 25,400 Nm 18,730 lbf·ft
- 100 MPa 15,000 psi (100 MPa)
- 44 Pcs 44 Pcs
- PH 32 HD Type PH 32 HD Type
- yes yes
- 140 kW 187 hp (140 kW)
- 30 – 45 t 66K – 100K lb
- 260 – 300 l/min 69 – 80 gal/min
- 65 rpm 65 rpm
- ER 17/75/70/30 Q ER 17/75/70/30 Q
- 2,000 kg 4,410 lb
Details -
EKT 150
- 720 mm 27 in
- 880 mm 35 in
- 1,540 mm 61 in
- 84.2 kN 18,930 lbf
- 450 l/min 118 gal/min
- 400 bar 5,800 psi (400 bar)
- 30,300 Nm 22,350 lbf·ft
- 100 MPa 15,000 psi (100 MPa)
- 44 Pcs 44 Pcs
- PH 32 HD Type PH 32 HD Type
- yes yes
- 150 kW 200 hp (150 kW)
- 35 – 50 t 77K – 110K lb
- 280 – 320 l/min 74 – 85 gal/min
- 60 rpm 60 rpm
- ER 17/75/70/30 Q ER 17/75/70/30 Q
- 2,000 kg 4,410 lb
Details -
EKT 160
- 720 mm 27 in
- 880 [1,60] mm 35 [42] in
- 1,540 mm 61 in
- 94.4 kN 21,220 lbf
- 450 l/min 118 gal/min
- 400 bar 5,800 psi (400 bar)
- 34,000 Nm 25,080 lbf·ft
- 120 MPa 17,000 psi (120 MPa)
- 44 [56] Pcs 44 [56] Pcs
- PH 32 HD Type PH 32 HD Type
- yes yes
- 150 kW 200 hp (150 kW)
- 35 – 50 t 77K – 110K lb
- 290 – 330 l/min 77 – 88 gal/min
- 60 rpm 60 rpm
- ER 19/75/70/30 Q ER 19/75/70/30 Q
- 2,000 [2,500] kg 4,410 [5,510] lb
Details -
EKT 160 HD
- 720 mm 27 in
- 1,060 mm 42 in
- 1,540 mm 61 in
- 94,4 kN 21,220 lbf
- 450 l/min 118 gal/min
- 400 bar 5,800 psi (400 bar)
- 34,000 Nm 25,080 lbf·ft
- 120 MPa 17,000 psi (120 MPa)
- 56 Pcs 56 Pcs
- PH 32 HD Type PH 32 HD Type
- yes yes
- 150 kW 200 hp (150 kW)
- 35 – 50 t 77K – 110K lb
- 290 – 330 l/min 77 – 88 gal/min
- 60 rpm 60 rpm
- ER 19/75/70/30 Q ER 19/75/70/30 Q
- 2,500 kg 5,510 lb
Details -
EKT 220
- 860 mm 34 in
- 920 | 1.300 mm 37 | 52 in
- 1,760 mm 70 in
- 169.8 kN 38,170 lbf
- 650 l/min 170 gal/min
- 400 bar 5,800 psi (400 bar)
- 73,000 Nm 53,840 lbf·ft
- 140 MPa 20,000 psi (140 MPa)
- 44 | 60 Pcs 44 | 60 Pcs
- PH 38 HD Type PH 38 HD Type
- yes yes
- 220 kW 295 hp (220 kW)
- 50 – 70 t 110K – 154K lb
- 500 – 600 l/min 132 – 159 gal/min
- 40 rpm 40 rpm
- ER 25/80/80/38 C ER 25/80/80/38 C
- 3,100 | 3,550 kg 6,835 | 7,827 lb
Details
