KRX Powertool drives
Powertool drives with attachments for milling, drilling and mixing
- Multifunctional and versatile thanks to a large selection of attachments
- Quick interchangeability of attachments
- High torque radial piston motors
- Heavy duty, long lasting bearings
- Exceptionally robust hexagonal shaft connector

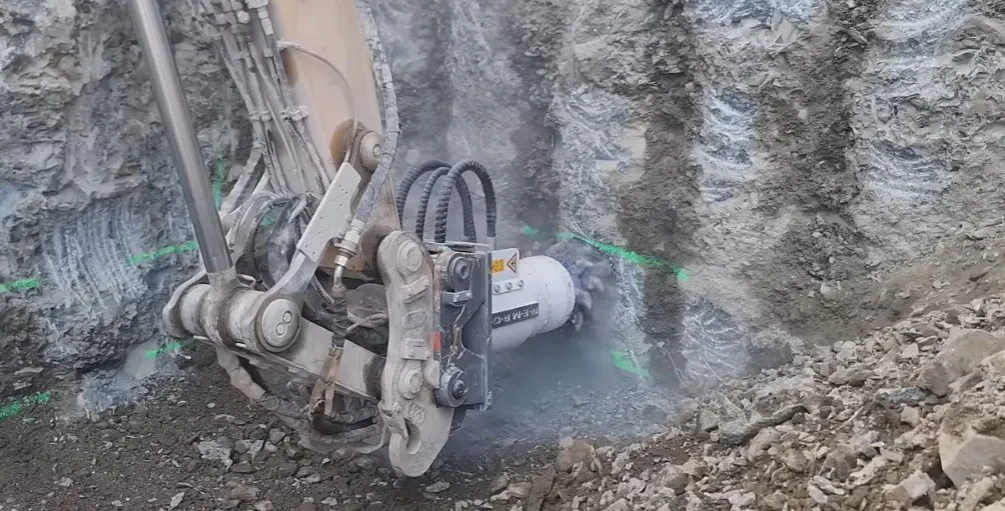

Used with a cutter attachment, the KRX drive can be used in trenching, cutting out foundations or for profiling bored pile heads. With a heavy duty hexagonal shaft connection, different attachments can be
exchanged quickly and easily.

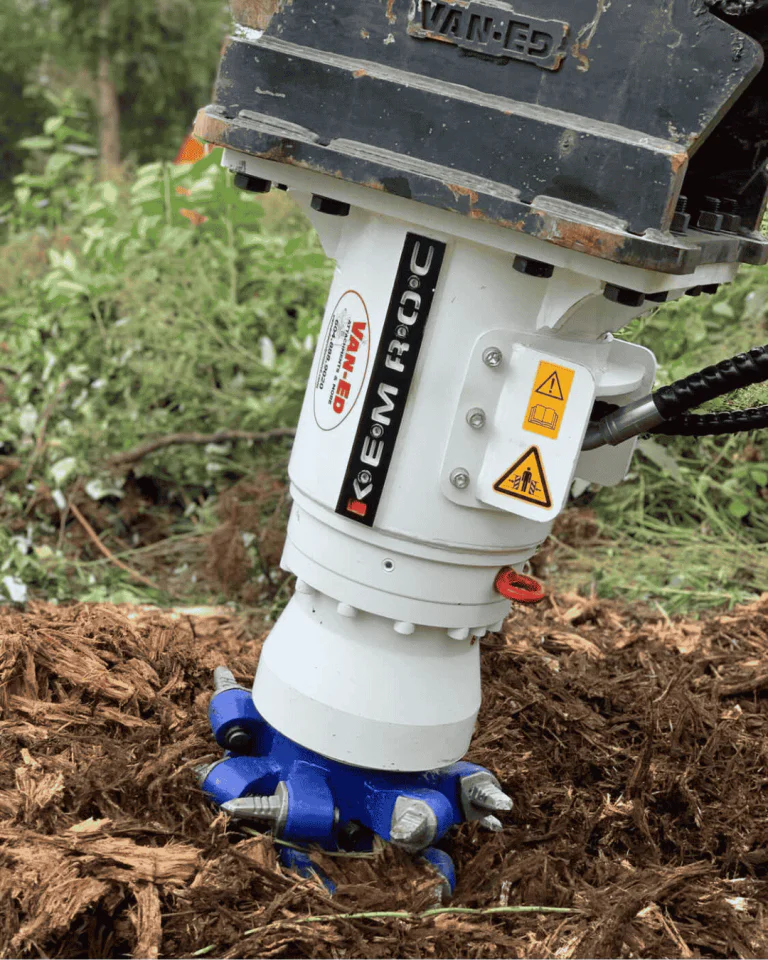

Milling attachments fitted with dragontooth tools can be used in permafrost or for tree stump grinding. Dragontooth cutters can also be used for mixing and soil stabilisation.

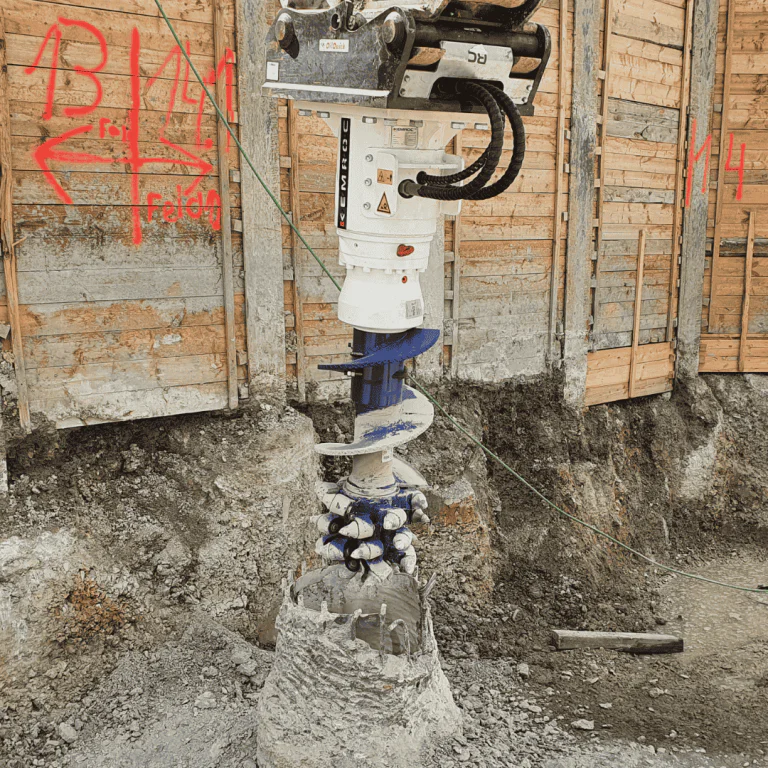

When used with a drilling attachment, the Powertool drive can drill shallow holes up to 1,500 milli–meters diameter. With heavy duty bearings and an oversized hexagonal shaft connection, these tools
are extremely strong and capable of drilling rock with uniaxial compressive strengths up to
60 MPa.
- Hex connection, standard
- Length of drive unit
- Max. hydraulic pressure
- Max. oil flow at 10 bar
- Max. torque at 380 bar
- Rated power
- Recommended excavator weight
- Recommended oil flow
- Recommended rotation speed
- Weight without attachment
-
KRX 30
- 80 mm 3¼ in
- 550 mm 22 in
- 400 l/min 5,800 psi (400 bar) psi (bar)
- 110 l/min 29 gal/min
- 4,500 Nm 3,320 lbf·ft
- 30 kW 40 hp (30 kW)
- 5 – 8 t 11K – 18K lb
- 50 – 70 l/min 13 – 18 gal/min
- 80 rpm 80 rpm
- 160 kg 350 lb
Details -
KRX 45
- 80 mm 3¼ in
- 610 mm 24 in
- 400 l/min 5,800 psi (400 bar) psi (bar)
- 130 l/min 34 gal/min
- 7,500 Nm 5,532 lbf·ft
- 45 kW 60 hp (45 kW)
- 9 – 12 t 20K – 26K lb
- 80 – 110 l/min 21 – 29 gal/min
- 70 rpm 70 rpm
- 240 kg 530 lb
Details -
KRX 65
- 80 mm 3¼ in
- 610 mm 24 in
- 400 l/min 5,800 psi (400 bar) psi (bar)
- 190 l/min 50 gal/min
- 11,300 Nm 8,335 lbf·ft
- 65 kW 87 hp (65 kW)
- 13 – 20 t 28K – 44K lb
- 120 – 170 l/min 31 – 44 gal/min
- 70 rpm 70 rpm
- 260 kg 570 lb
Details -
KRX 68
- 80 mm 3¼ in
- 610 mm 24 in
- 400 l/min 5,800 psi (400 bar) psi (bar)
- 190 l/min 50 gal/min
- 15,000 Nm 11,060 lbf·ft
- 65 kW 87 hp (65 kW)
- 15 – 23 t 33K – 50K lb
- 130 – 170 l/min 34 – 44 gal/min
- 70 rpm 70 rpm
- 260 kg 570 lb
Details -
KRX 70
- 160 mm 6¼ in
- 830 mm 33 in
- 400 l/min 5,800 psi (400 bar) psi (bar)
- 300 l/min 79 gal/min
- 16,000 Nm 11,800 lbf·ft
- 70 kW 94 hp (70 kW)
- 15 – 25 t 33K – 55K lb
- 130 – 190 l/min 34 – 50 gal/min
- 75 rpm 75 rpm
- 520 kg 1,150 lb
Details -
KRX 110
- 160 mm 6¼ in
- 842 mm 33 in
- 400 l/min 5,800 psi (400 bar) psi (bar)
- 320 l/min 84 gal/min
- 25,400 Nm 18,735 lbf·ft
- 110 kW 148 hp (110 kW)
- 20 – 35 t 44K – 77K lb
- 180 – 300 l/min 47 – 79 gal/min
- 70 rpm 70 rpm
- 540 kg 1,190 lb
Details -
KRX 120
- 160 mm 6¼ in
- 842 mm 33 in
- 400 l/min 5,800 psi (400 bar) psi (bar)
- 350 l/min 92 gal/min
- 30,300 Nm 22,348 lbf·ft
- 120 kW 160 hp (120 kW)
- 25 – 40 t 55K – 88K lb
- 200-340 l/min 52 – 89 gal/min
- 60 rpm 60 rpm
- 540 kg 1,190 lb
Details -
KRX 130
- 160 mm 6¼ in
- 842 mm 33 in
- 400 l/min 5,800 psi (400 bar) psi (bar)
- 350 l/min 92 gal/min
- 33,000 Nm 24,340 lbf·ft
- 120 kW 160 hp (120 kW)
- 25 – 40 t 55K – 88K lb
- 230 – 340 l/min 60 – 89 gal/min
- 60 rpm 60 rpm
- 540 kg 1,190 lb
Details -
KRX 140
- 160 mm 6¼ in
- 875 mm 35 in
- 400 l/min 5,800 psi (400 bar) psi (bar)
- 390 l/min 103 gal/min
- 36,400 Nm 26,848 lbf·ft
- 140 kW 188 hp (140 kW)
- 30 – 50 t 66K – 110K lb
- 280-370 l/min 73 – 97 gal/min
- 50 rpm 50 rpm
- 900 kg 1,980 lb
Details -
KRX 150
- 160 mm 6¼ in
- 875 mm 35 in
- 400 l/min 5,800 psi (400 bar) psi (bar)
- 420 l/min 111 gal/min
- 43,000 Nm 31,720 lbf·ft
- 140 kW 188 hp (140 kW)
- 35 – 50 t 77K – 110K lb
- 300 – 390 l/min 79 – 103 gal/min
- 50 rpm 50 rpm
- 900 kg 1,980 lb
Details
