ES Cutter Heads
Cutter heads for asphalt, concrete and rock
- Tool carrier with high torque hydraulic motor
- Milling attachment for the precise removal of material from horizontal and vertical surfaces
- An integrated rotation unit, providing continuous stepless rotation, is availabe as an option B B A A

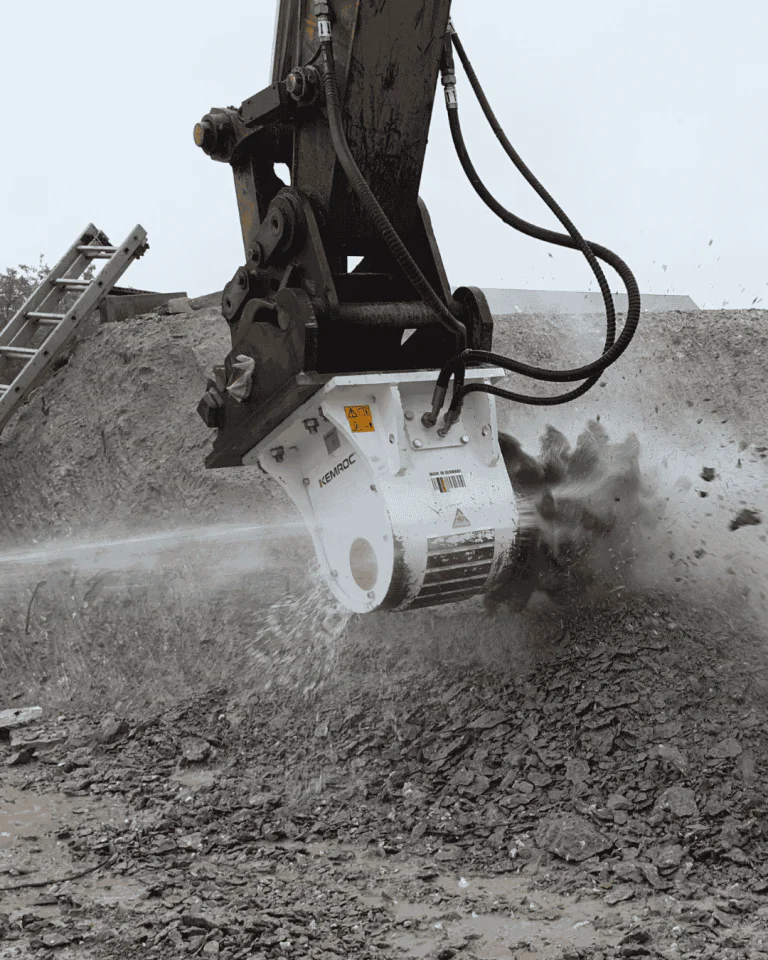

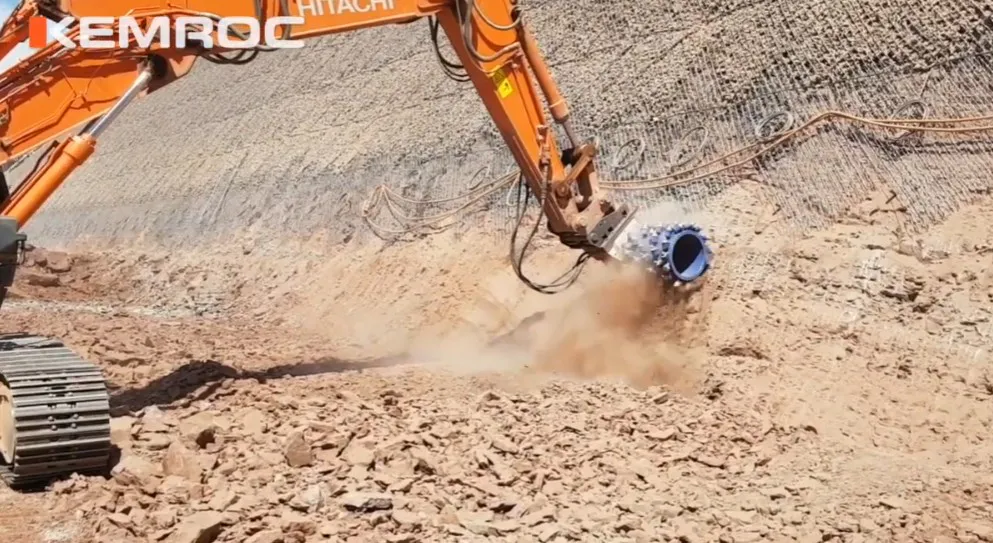

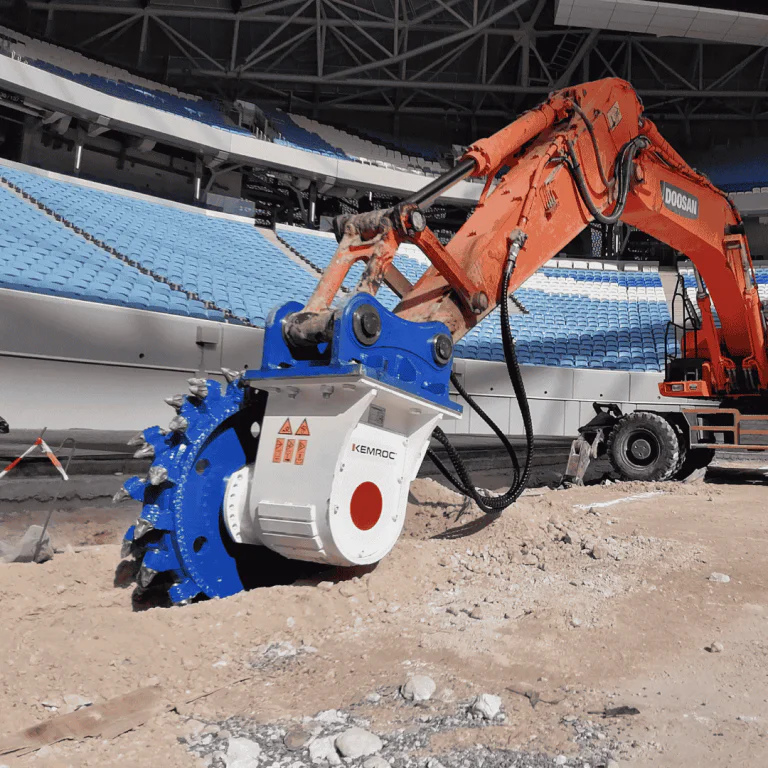

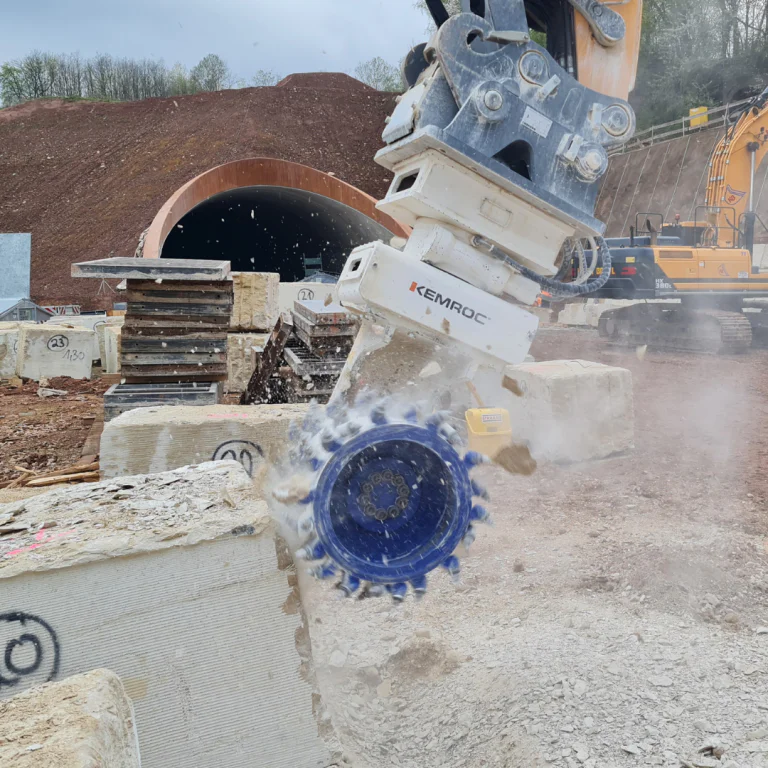

The ES range of cutter heads are ideally suited for accurate profiling of horizontal or vertical surfaces. Whether for surface cleaning, profiling, straightening or simply for material removal, depending on the application, various types of cutter drum can be used for processing asphalt, concrete and rock.
ES cutter heads are available for excavators with 1 to 40 ton operating weight and can be used in conjunction with stepless rotation modules.
Measure:
Compare Models
- Cutting depth
- Diameter of cutter drum (A)
- Max. hydraulic pressure
- Max. oil flow
- Min. oil flow
- Number of picks
- Pick box
- Rated power
- Recommended excavator weight
- Standard pick
- Torque at 350 bar
- Width of cutter drum (B)
- Diameter of cutter drum (A
Show more
Show less
-
ES 20
- 85 mm 3 in
- 360 mm 14 in
- 310 l/min 4,350 psi (310 bar) psi (bar)
- 70 l/min 18 gal/min
- 20 l/min 6 gal/min
- 42 Pcs 42 Pcs
- PH 14 Type PH 14 Type
- 22 kW 30 hp (22 kW)
- 1 – 3 t 2,200 – 6,600 lb
- ER 16/28/26/14 H ER 16/28/26/14 H
- 1,127 Nm 840 lbf·ft
- 200 mm 8 in
Details -
ES 20 HD
- 85 mm 3 in
- 360 mm 14 in
- 310 l/min 4,350 psi (310 bar) psi (bar)
- 90 l/min 23 gal/min
- 25 l/min 7 gal/min
- 42 Pcs 42 Pcs
- PH 14 Type PH 14 Type
- 22 kW 30 hp (22 kW)
- 2 – 4 t 4,400 – 8,800 lb
- ER 16/28/26/14 H ER 16/28/26/14 H
- 1,710 Nm 1,300 lbf·ft
- 200 mm 8 in
Details -
ES 30 HD
- 110 mm 4 in
- 520 mm 20 in
- 380 l/min 5,500 psi (380 bar) psi (bar)
- 110 l/min 29 gal/min
- 60 l/min 16 gal/min
- 35 Pcs 35 Pcs
- PH 20 Type PH 20 Type
- 30 kW 40 hp (30 kW)
- 5 – 10 t 11,000 – 22,000 lb
- ER 16/48/32/20 H ER 16/48/32/20 H
- 4,100 Nm 3,100 lbf·ft
- 300 mm 12 in
Details -
ES 45 HD
- 110 mm 4 in
- 580 mm
- 380 l/min 5,500 psi (380 bar) psi (bar)
- 180 l/min 47 gal/min
- 100 l/min 27 gal/min
- 49 Pcs 49 Pcs
- PH 20 Type PH 20 Type
- 65 kW 87 hp (65 kW)
- 10 – 16 t 22,000 – 33,000 lb
- ER 16/48/32/20 H ER 16/48/32/20 H
- 8,700 Nm 6,500 lbf·ft
- 450 mm 18 in
Details -
ES 60 HD
- 190 mm 7 in
- 670 mm 26 in
- 380 l/min 5,500 psi (380 bar) psi (bar)
- 210 l/min 55 gal/min
- 150 l/min 40 gal/min
- 69 Pcs 69 Pcs
- PH 20 Type PH 20 Type
- 80 kW 107 hp (80 kW)
- 15 – 23 t 33,000 – 50,000 lb
- ER 16/48/32/20 H ER 16/48/32/20 H
- 11,700 Nm 8,700 lbf·ft
- 600 mm 24 in
Details -
ES 70 HD
- 190 mm 7 in
- 670 mm 26 in
- 380 l/min 5,500 psi (380 bar) psi (bar)
- 210 l/min 55 gal/min
- 180 l/min 48 gal/min
- 69 Pcs 69 Pcs
- PH 20 Type PH 20 Type
- 80 kW 107 hp (80 kW)
- 20 – 25 t 44,000 – 55,000 lb
- ER 16/48/32/20 H ER 16/48/32/20 H
- 18,000 Nm 13,300 lbf·ft
- 600 mm 24 in
Details -
ES 80 HD
- 150 mm 6 in
- 825 mm 32 in
- 380 l/min 5,500 psi (380 bar) psi (bar)
- 210 l/min 55 gal/min
- 150 l/min 40 gal/min
- 69 (800 mm) Pcs 69 (32 in) Pcs
- PH 32 HD Type PH 32 HD Type
- 80 kW 107 hp (80 kW)
- 15 – 25 t 33,000 – 55,000 lb
- ER 17/75/70/30 Q ER 17/75/70/30 Q
- 15,200 Nm 11,300 lbf·ft
- 600 | 800 mm 24 | 32 in
Details -
ES 90 HD
- 150 mm 6 in
- 825 mm 32 in
- 380 l/min 5,500 psi (380 bar) psi (bar)
- 210 l/min 55 gal/min
- 180 l/min 48 gal/min
- 69 (800 mm) Pcs 69 (32 in) Pcs
- PH 32 HD Type PH 32 HD Type
- 80 kW 107 hp (80 kW)
- 20 – 30 t 44,000 – 66,000 lb
- ER 17/75/70/30 Q ER 17/75/70/30 Q
- 18,000 Nm 13,300 lbf·ft
- 600 | 800 mm 24 | 32 in
Details -
ES 110 HD
- 105 | 150 mm 4 | 6 in
- 785 mm 31 in
- 380 l/min 5,500 psi (380 bar) psi (bar)
- 350 l/min 92 gal/min
- 210 l/min 56 gal/min
- 44 (600 mm Pcs 44 (24 in) Pcs
- PH 32 HD Type PH 32 HD Type
- 110 kW 148 hp (110 kW)
- 25 – 40 t 55,000 – 88,000 lb
- ER 19/75/70/30 Q ER 19/75/70/30 Q
- 27,800 Nm 20,600 lbf·ft
- 600 | 800 | 1.000 mm 24 | 32 | 39 in
Details -
ES 120 HD
- 105 | 150 mm 4 | 6 in
- 785 mm 31 in
- 380 l/min 5,500 psi (380 bar) psi (bar)
- 350 l/min 92 gal/min
- 230 l/min 61 gal/min
- 44 (600 mm Pcs 44 (24 in) Pcs
- PH 32 HD Type PH 32 HD Type
- 120 kW 160 hp (120 kW)
- 25 – 40 t 55,000 – 88,000 lb
- ER 19/75/70/30 Q ER 19/75/70/30 Q
- 30,000 Nm 22,200 lbf·ft
- 600 | 800 | 1.000 mm 24 | 32 | 39 in
Details
