EK Chain Cutters

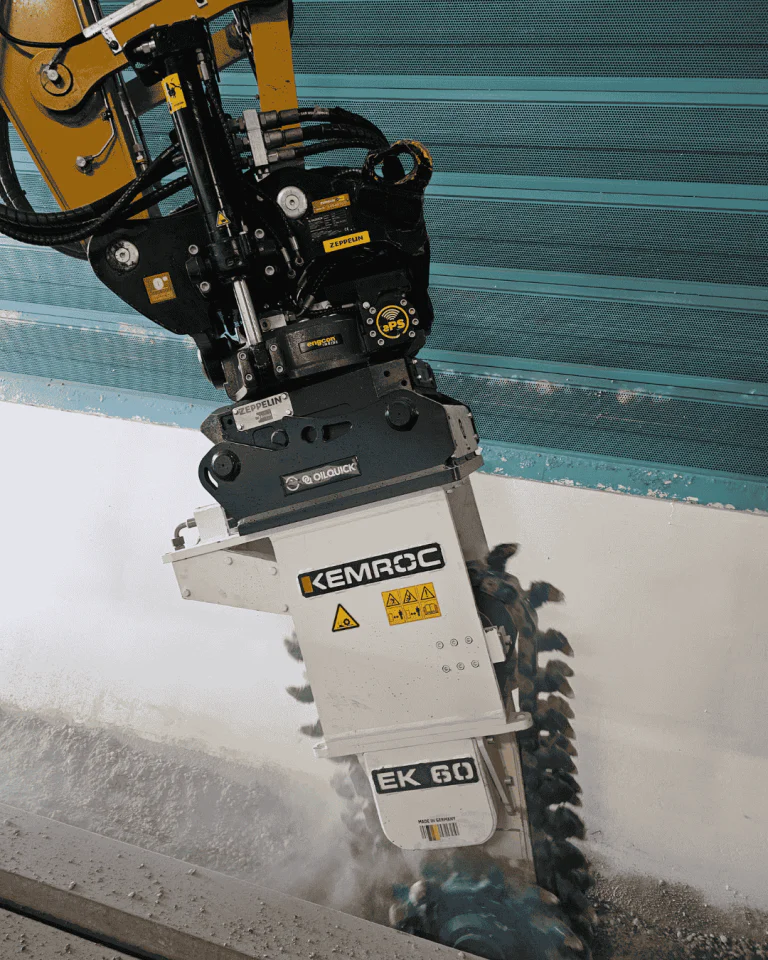

Model EK 60

TECHNICAL DATA

VIDEO

FOTOS

Measure:

Recommended excavator weight

12 – 17 t 26,500 – 37,500 lb
Rated power

60 kW 80 hp (60 kW)
Drum cutter length (A)

1.600 mm 63 in
Cutter head width (B)

500 | 600 mm 20 | 40 in
Cutter drum diameter (C)

600 mm 24 in
Width of gearbox (D)

455 mm 18 in
Recommended rotation speed

80 rpm 80 rpm
Recommended oil flow

130 – 160 l/min 34 – 43 gal/min
Max. oil flow

220 l/min 58 gal/min
Max. operating hydraulic pressure

400 bar 5,800 psi (400 bar)
Max. torque at max. hydraulic pressure

11,000 Nm 8,110 lbf·ft
Max. cutting force at max. torque

36.7 kN 8,250 lbf
Max. uniaxial compressive strength

50 MPa 7,300 psi (50 MPa)
Weight

1,250 | 1,300 kg 2,760 | 2,870 lb
Pick box

PH 22 Type PH 22 Type
Number of picks in cutter drums

40 | 60 Pcs 40 | 60 Pcs
Number of picks in the cutter chain

53 Pcs 53 Pcs
Standard pick

ER 15/46/38/22 C ER 15/46/38/22 C
