EK Chain Cutters

Model EK 100

TECHNICAL DATA

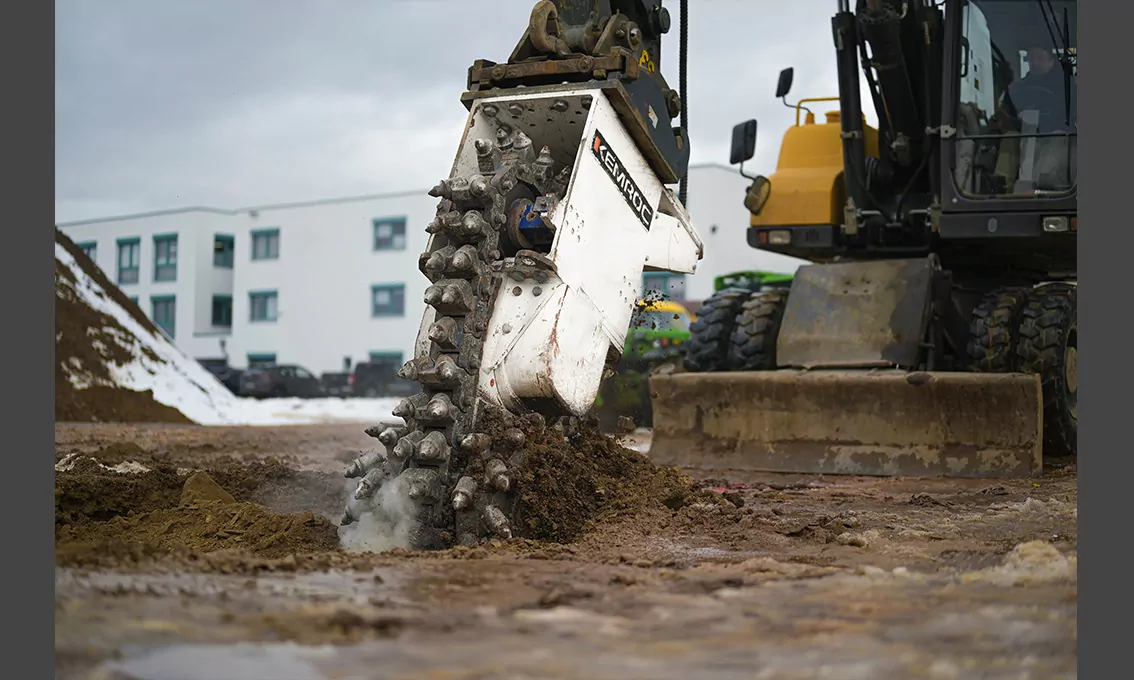

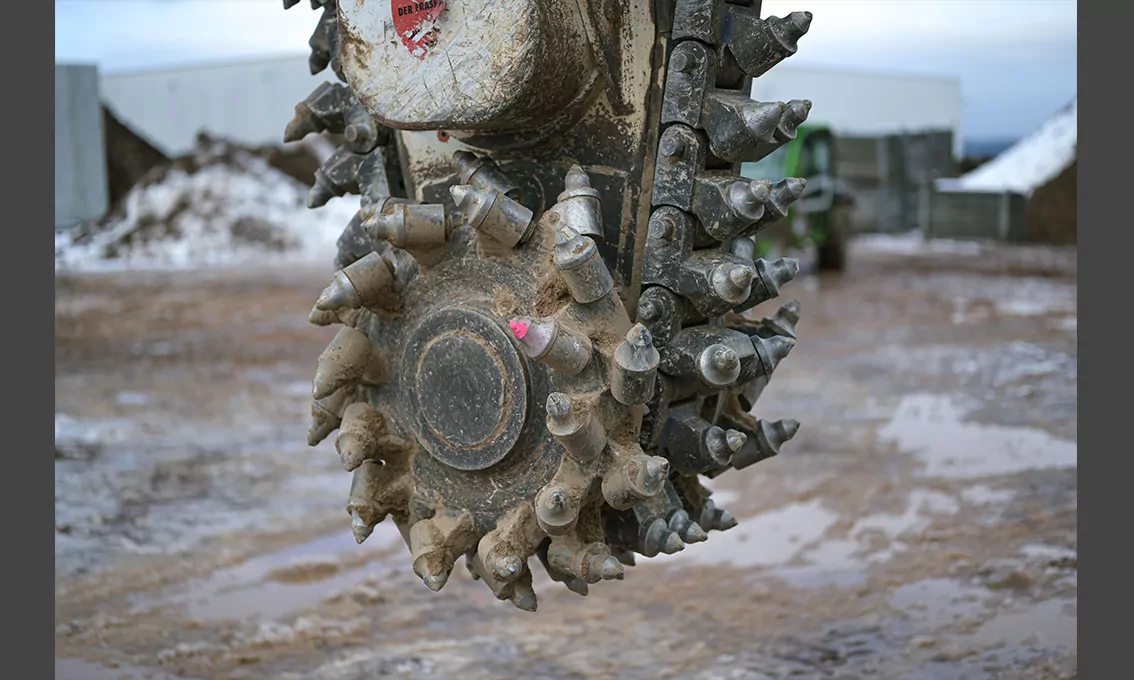

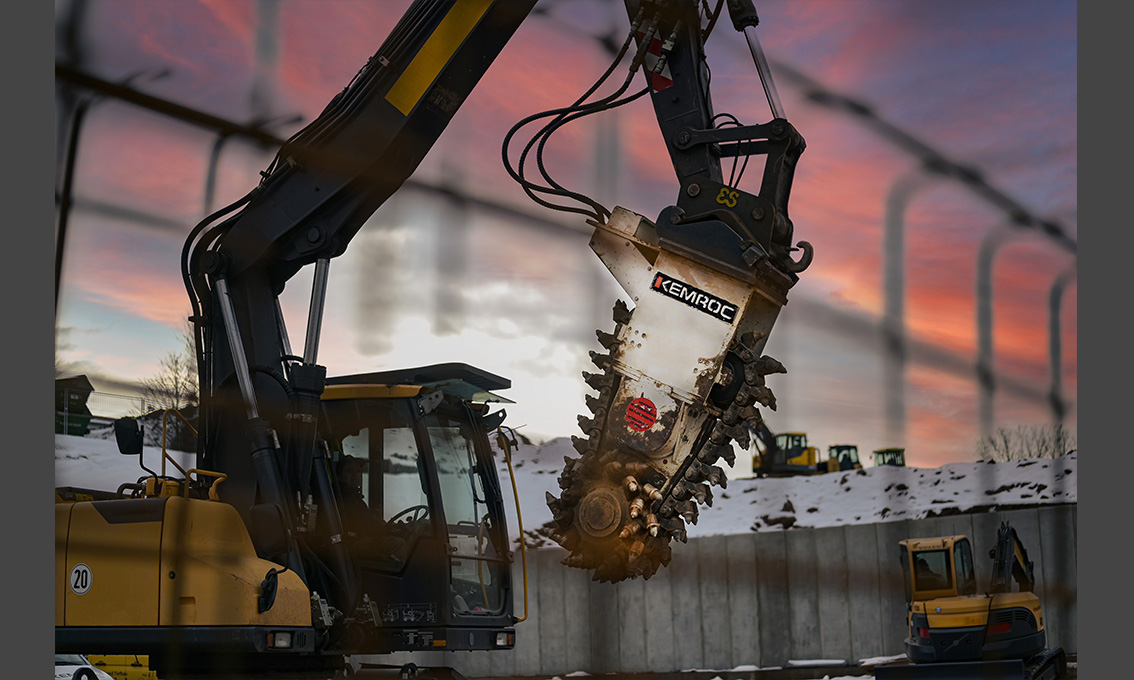

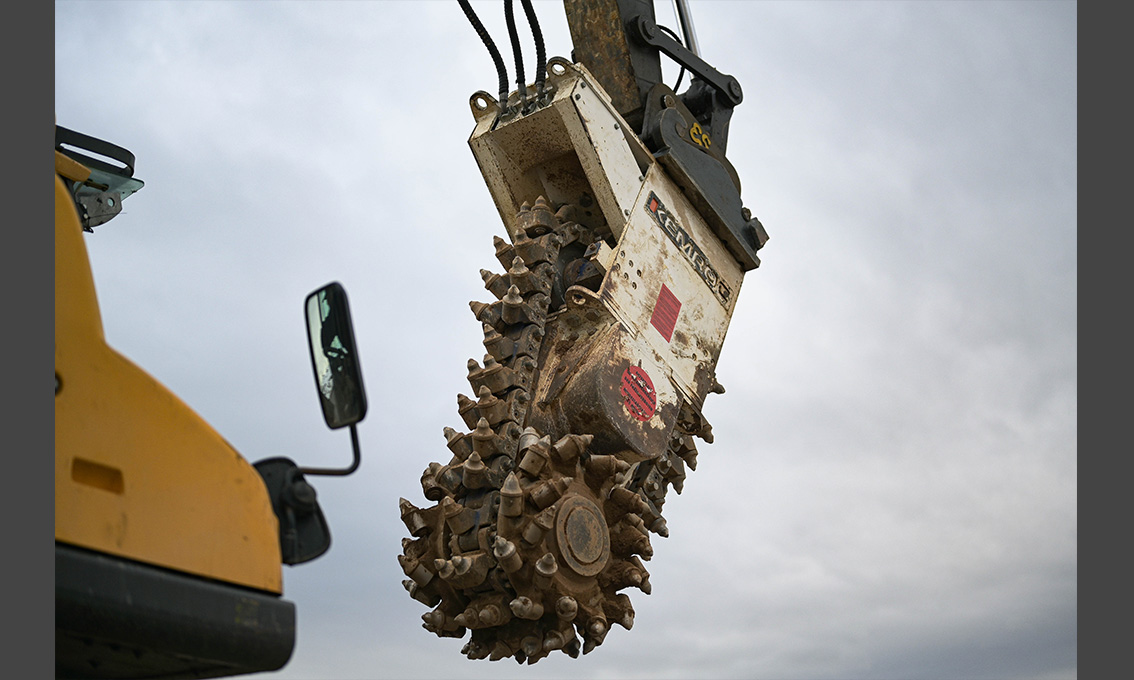

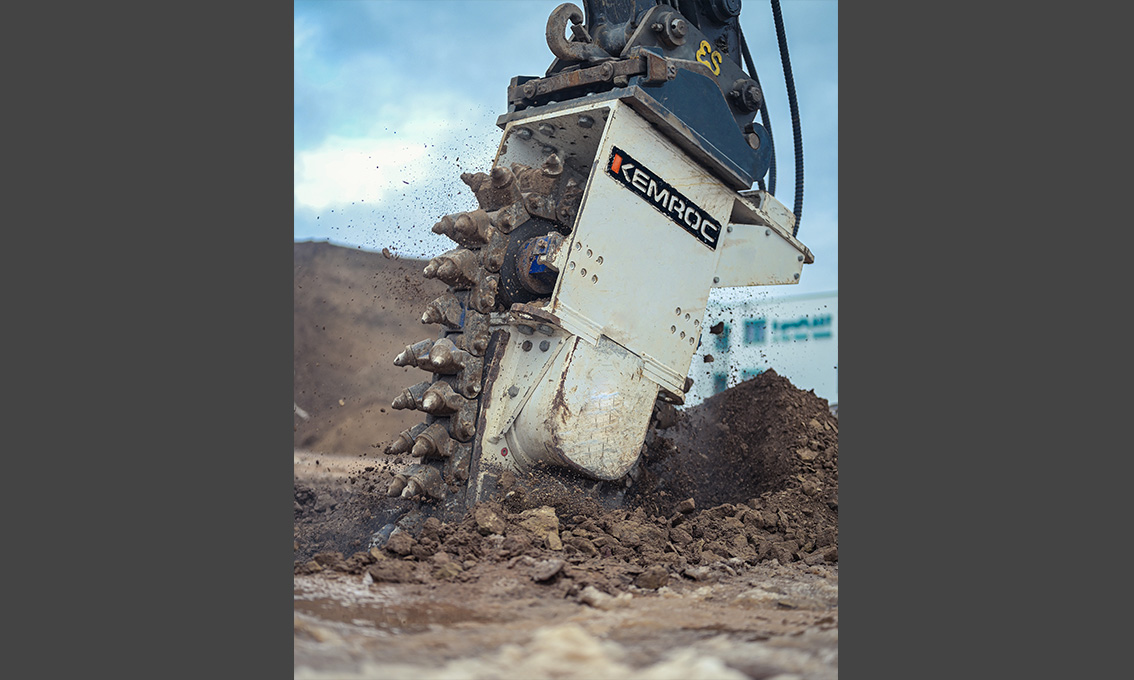

FOTOS

Measure:

Recommended excavator weight
18 – 30 t 40,000 – 66,000 lb
Rated power
100 kW 134 hp (100 kW)
Drum cutter length (A)
1.970 mm 78 in
Cutter head width (B)
600 | 700 | 800 mm 24 | 28 | 32 in
Cutter drum diameter (C)
800 mm 32 in
Width of gearbox (D)
565 mm 22 in
Recommended rotation speed
70 rpm 70 rpm
Recommended oil flow
180 – 240 l/min 48 – 64 gal/min
Max. oil flow
260 l/min 69 gal/min
Max. operating hydraulic pressure
400 bar 5,800 psi (400 bar)
Max. torque at max. hydraulic pressure
18,300 Nm 13,500 lbf·ft
Max. cutting force at max. torque
45.8 kN 10,300 lbf
Max. uniaxial compressive strength
80 MPa 12,000 psi (80 MPa)
Weight
2.450 | 2.510 | 2.620 kg 5,400 – 5,535 – 5,750 lb
Pick box
PH 32 HD Type PH 32 HD Type
Number of picks in cutter drums
28 | 40 | 48 Pcs 28 | 40 | 48 Pcs
Number of picks in the cutter chain
54 Pcs 54 Pcs
Standard pick
ER 17/75/70/30 Q ER 17/75/70/30 Q
