EBA Auger Drive Attachments
Auger drive attachments for excavators and backhoe loaders
- Short and heavy duty construction
- Robust and rigid bracket
- Direct drive without planetary gears
- Robust hexagonal shaft connector

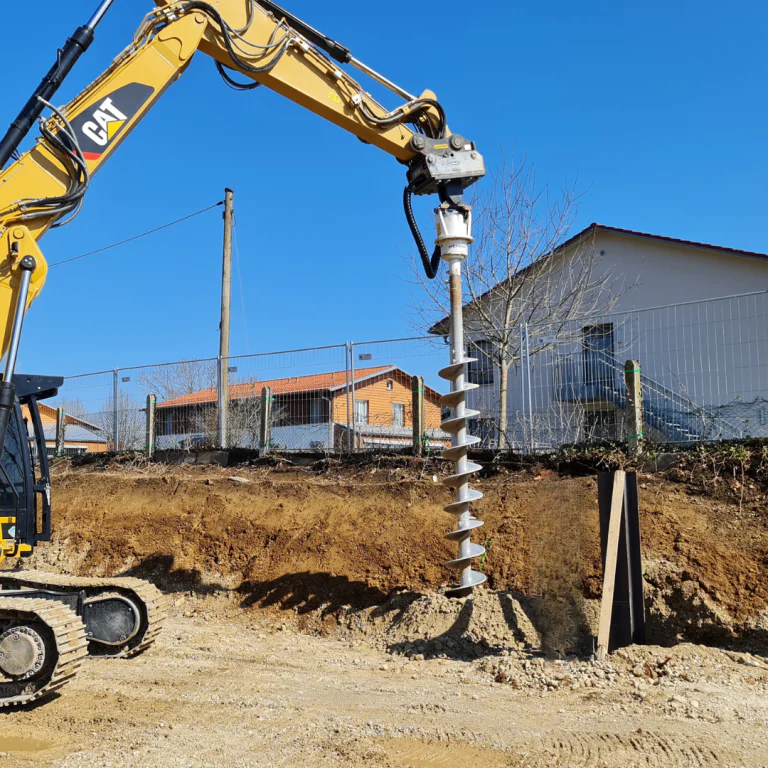

The EBA range of auger drive units allows you to quickly convert your excavator or backhoe loader into a drill rig by simply changing the attachment.

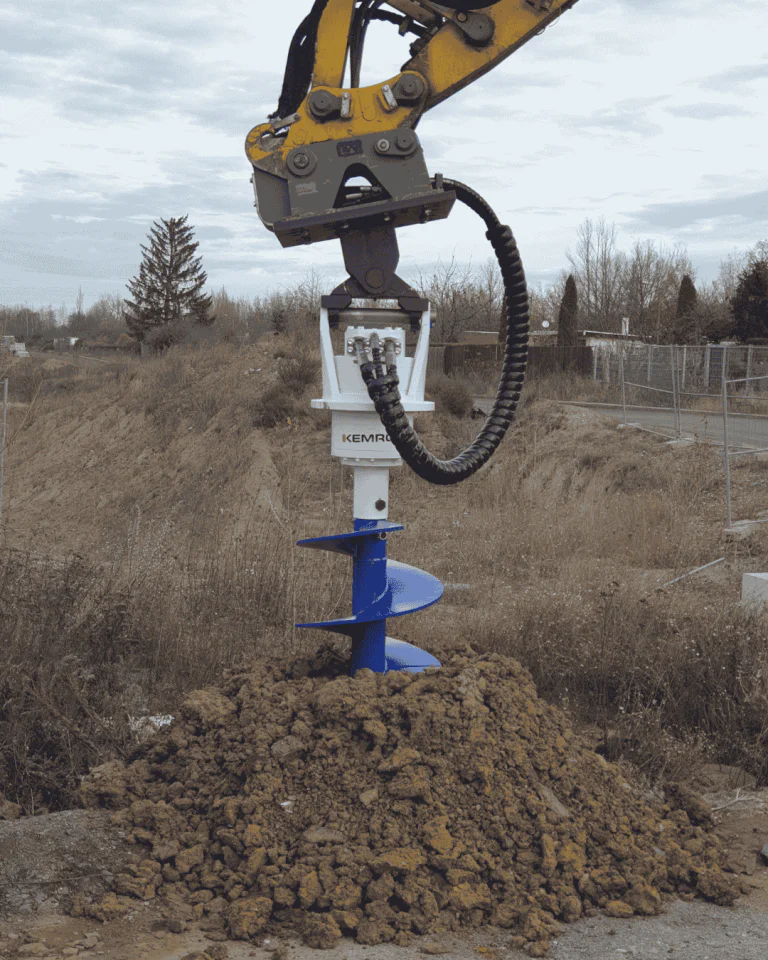

These auger drive units are ideal for drilling holes in soft to compact soils, cobbles and in soft rock with compressive strengths up to 50 MPa.
For use in harder rock, KEMROC have developed special drilling tools to ensure higher drilling speeds.
Instructions for drilling with KEMROC drill drives
Measure:
Compare Models
- Auger connection
- Diameter of drive unit (A)
- Length of drive unit (B)
- Max. drill diameter
- Max. drilling depth at max. drill diameter
- Max. drilling depth at min. drill diameter
- Max. oil flow
- Max. operating hydraulic pressure
- Max. rotation speed
- Max. torque
- Min. drill diameter
- Recommended excavator weight
- Recommended oil flow
- Weight excl. hydraulic hoses and mounting plate
Show more
Show less
-
EBA 500
- H 80 Type H 80 Type
- 390 mm 16 in
- 600 mm 24 in
- 800 mm 32 in
- 2.000 mm 80 in
- 5.000 mm 200 in
- 85 l/min 22 gal/min
- 380 bar 5,500 psi (380 bar)
- 90 rpm 90 rpm
- 5,200 Nm 3,900 lbf·ft
- 200 mm 8 in
- 7 – 13 t 15,500 – 28,000 lb
- 50 – 70 l/min 13 – 18 gal/min
- 160 kg 353 lb
Details -
EBA 750
- H 80 Type H 80 Type
- 390 mm 16 in
- 600 mm 24 in
- 800 mm 32 in
- 2.000 mm 80 in
- 5.000 mm 200 in
- 85 l/min 22 gal/min
- 380 bar 5,500 psi (380 bar)
- 90 rpm 90 rpm
- 7,500 Nm 5,600 lbf·ft
- 200 mm 8 in
- 7 – 15 t 15,500 – 33,000 lb
- 60 – 80 l/min 16 – 21 gal/min
- 160 kg 353 lb
Details -
EBA 1000
- H 80 Type H 80 Type
- 390 mm 16 in
- 600 mm 24 in
- 1.000 mm 40 in
- 3.000 mm 120 in
- 5.000 mm 200 in
- 150 l/min 39 gal/min
- 380 bar 5,500 psi (380 bar)
- 80 rpm 80 rpm
- 10.400 Nm 7,700 lbf·ft
- 200 mm 8 in
- 14 – 17 t t 30,000 – 37,000 lb
- 80 – 150 l/min 21 – 39 gal/min
- 180 kg 397 lb
Details -
EBA 1500
- H 80 Type H 80 Type
- 390 mm 16 in
- 600 mm 24 in
- 1.000 mm 40 in
- 3.000 mm 120 in
- 5.000 mm 200 in
- 150 l/min 39 gal/min
- 380 bar 5,500 psi (380 bar)
- 80 rpm 80 rpm
- 15.000 Nm 11,100 lbf·ft
- 200 mm 8 in
- 16 – 20 t t 35,000 – 44,000 lb
- 100 – 150 l/min 27 – 39 gal/min
- 180 kg 397 lb
Details -
EBA 2300
- H 80 Type H 80 Type
- 500 mm 20 in
- 980 mm 39 in
- 1.200 mm 48 in
- 4.000 mm 160 in
- 8.000 mm 320 in
- 300 l/min 79 gal/min
- 380 bar 5,500 psi (380 bar)
- 75 rpm 75 rpm
- 23.400 Nm 17,300 lbf·ft
- 300 mm 12 in
- 18 – 35 t 40,000 – 77,000 lb
- 150 – 250 l/min 39 – 66 gal/min
- 360 kg 794 lb
Details -
EBA 2800
- H 80 Type H 80 Type
- 500 mm 20 in
- 980 mm 39 in
- 1.500 mm 60 in
- 4.000 mm 160 in
- 8.000 mm 320 in
- 300 l/min 79 gal/min
- 380 bar 5,500 psi (380 bar)
- 75 rpm 75 rpm
- 28,000 Nm 20,700 lbf·ft
- 300 mm 12 in
- 25 – 40 t 55,000 – 88,000 lb
- 180 – 280 l/min 47 – 74 gal/min
- 360 kg 794 lb
Details -
EBA 3300
- H 80 Type H 80 Type
- 500 mm 20 in
- 980 mm 39 in
- 1.500 mm 60 in
- 4.000 mm 160 in
- 8.000 mm 320 in
- 300 l/min 79 gal/min
- 380 bar 5,500 psi (380 bar)
- 75 rpm 75 rpm
- 33,000 Nm 25,900 lbf·ft
- 300 mm 12 in
- 25 – 40 t 55,000 – 88,000 lb
- 180 – 280 l/min 47 – 74 gal/min
- 360 kg 794 lb
Details
