DMW Cutter Wheels

Model DMW 130 Wheel 400

TECHNICAL DATA
VIDEO
FOTOS
Measure:
  • Recommended excavator weight
    20 – 40 t 44,000 – 88,000 lb
  • Rated power
    130 kW 175 hp (130 kW)
  • Cutting width (A)
    80 | 130 | 200 mm 3 | 5 | 8 in

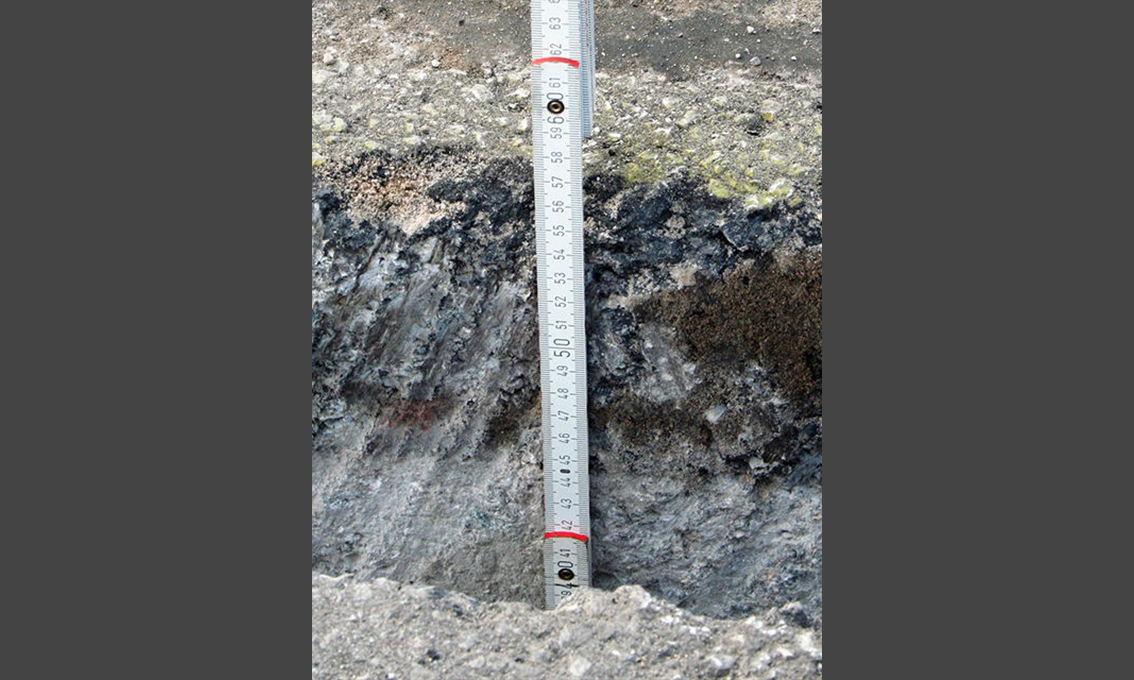

  • Cutting depth (B)
    400 mm 16 in
  • Cutting depth with sliding device
    300 mm 12 in
  • Cutter wheel diameter
    1.210 mm 48 in
  • Recommended rotation speed
    60 rpm 60 rpm
  • Recomm. oil flow according to wheel diameter
    280 – 340 l/min 74 – 90 gal/min
  • Max. oil flow at 50 bar
    340 l/min 90 gal/min
  • Max. operating hydraulic pressure
    400 bar 5,800 psi (380 bar)
  • Torque at 350 bar
    30,239 Nm 22,303 lbf·ft
  • Cutting force at 350 bar
    50.0 kN 11,240 lbf
  • Max. rebar diameter in re-enforced concrete *
    20 mm 0.75 in
  • Max. uniaxial compressive strength
    100 MPa 15,000 psi (100 MPa)
  • Weight of drive unit, approx.
    1.150 kg 2,540 lb
  • Weight of cutter wheel, approx. **
    400 kg 880 lb
  • Weight of dipping device, approx.
    300 kg 660  lb
  • Weight of protection cover, approx.
    55 kg 120 lb
  • Pick box
    PH 32 HD Type PH 32 HD Type
  • Standard pick
    ER 17/75/70/30 Q  ER 17/75/70/30 Q

KEMROC can supply wheels to order for various cutting widths and depths. Within technical boundaries, cutter wheels can be made to order.

* To maintain the warranty, check with the manufacturer before use in re-enforced concrete containing larger diameter rebar.

** Cutter wheel weight depends on diameter and width.
